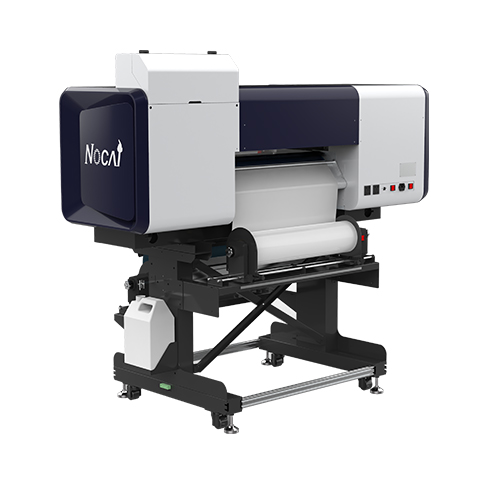

UV printer NC-UVDTF60-PLUS(high-end version)

Major Advantages

4 Epson I1600-E1 printhead. Unique variable ink droplet can control the ink size and thus decreasing the sense of particles of the graphic. More details, flat color transition and high staturation can be presented.
Silent rail make it more durable. Suction platform can help the coil products more flat and ensure the continuity and stability of the printing process. Automatic warning of lacking of ink can be convenient for adding ink.
Glue+CMYKWV+golden varnish can be achieved at the same time. It is easy to achieve golden relief and 3D effect.
60cm width can satisfy most of the format and graphic needs. Tear film, print, golden stamp and take back material can be achieved at one time, which saves time and labor cost.
Whether it is a logo label or a gradient pattern, varnish effects, hot stamping/silvering and other effects can be achieved, meeting the customer needs of various types of personalized customization. It is suitable for various shapes products and various materials with highly flexible.

ADD TO CART

Product Details

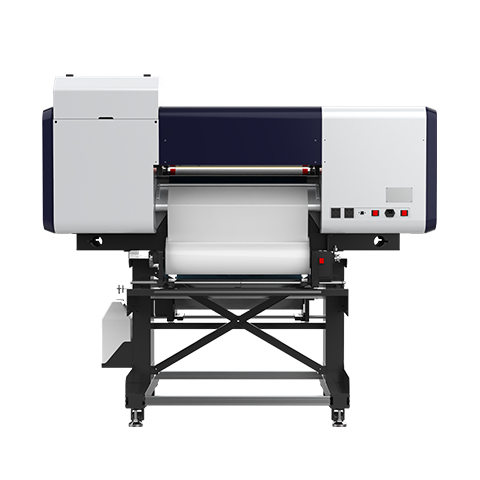

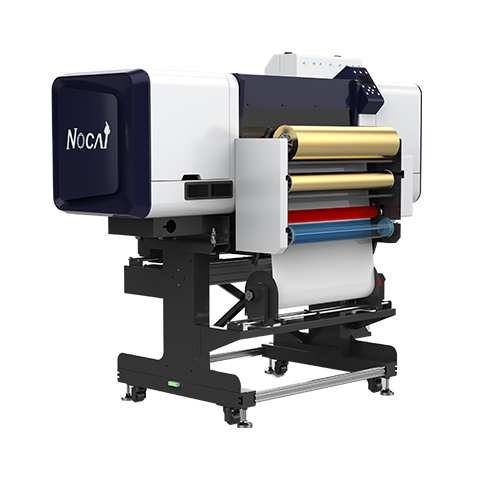

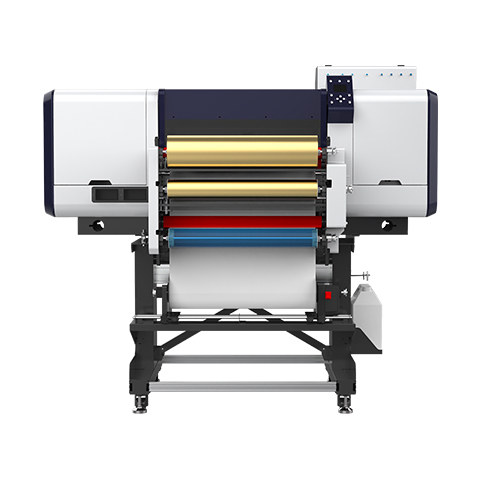

UV printer NC-UVDTF60-PLUS(high-end version)

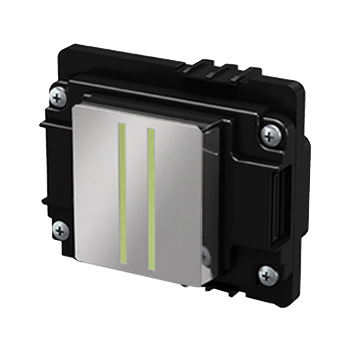

Equipped with 4 Epson I1600-E1 print heads, the accuracy can reach up to 1200dpi, and the printing quality is exquisite

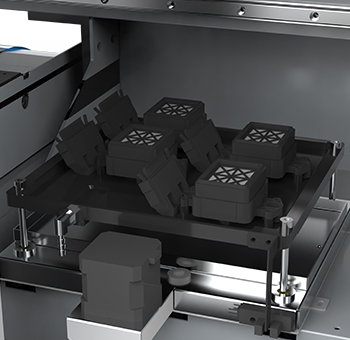

Lift ink station design, accurately control the head position, all-round protection of the print head.

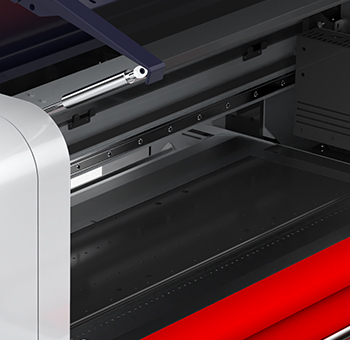

Suction platform can help the coil products more flat and ensure the continuity and stability of the printing process.

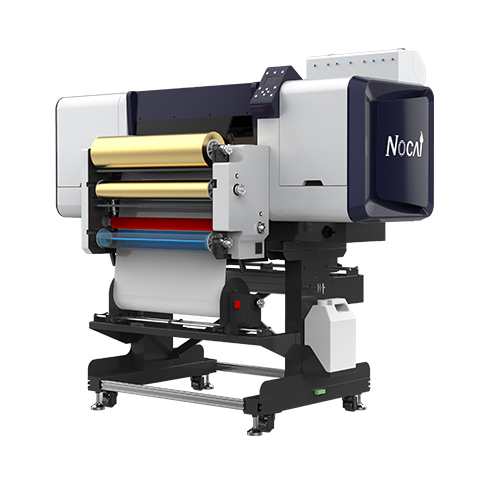

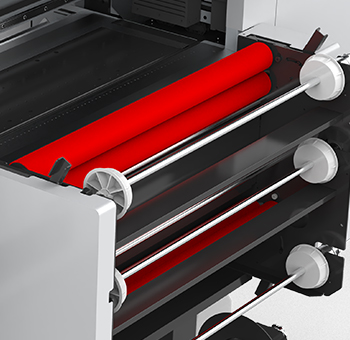

The intelligent UV DTF laminating machine independently developed by Nocai has the characterictic of stable and efficient lamination.

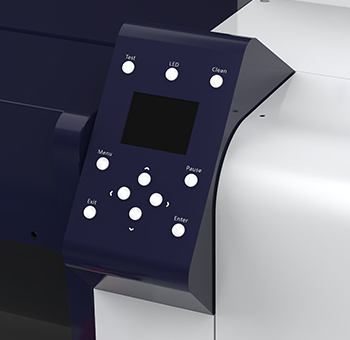

The control panel has various functions and the display is simple and easy to understand.

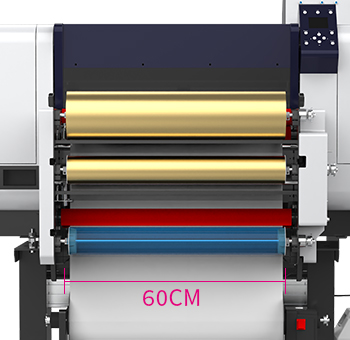

60cm width can satisfy most of the format and graphic needs. Tear film, print, golden stamp and take back material can be achieved at one time, which saves time and labor cost.

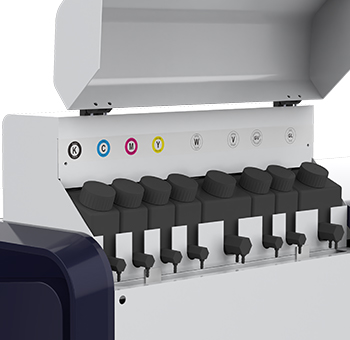

Automatic alarm for lack of ink, easy to add ink.

Parameter

Printhead configuration	Nozzle spray force range	Print size
Epson I1600-E1*4	2-3mm	60cm
Print height	Print version	Print mode
0-2mm	Glue and CMYKWV and Golden varnish print at same time	GL+KCMY+W+V+GV
Print resolution	Printer dimension	N.W.
960x1200dpi / 960x900dpi	1071mm1728mm1535mm	280kg
Packing size	G.W.	Rip software
1474mm2204mm1100mm	350kg	Future RIP
Application	Print speed	Graphic format
DTF AB film、DTF gold/silver stamp film	3.2-6m/h	Tiff,Jpg,Pdf
Connection method	Power	Rated Power
Network cable	AC220±10，50HZ~60HZ	Max. 330W
Laminating Temperature	Working environment	Ink type
60-120℃	Temperature:20℃-28℃ Humidity:35%-65%	UV DTF film specialized uv cured ink

Description

Nocai high-end UV DTF and laminating all in one machine can spray glue, stereoscopic relief, automatic feeding and reeling-film of gold stamp. High speed, high-precision and stong stability can help print only one label or LOGO. Flexibility and wide applicability make the operation very easy.
