UV Printer for Bottles NC-CylinderElf-IV-A

Major Advantages

The third-generation digital inkjet printer for thermos cups adopts spiral printing technology and produces 360° white varnish at the same time. The printing speed is as fast as 30 seconds per piece, which is suitable for mass production mode.
The printing length is 80-280mm and the printing diameter is 45-160mm, which can meet the needs of various types of products such as thermos cups and pots, cylindrical electronic products, wine bottles, etc., and has a wide range of applications.
Adopting 3 RICOHGEN5 and 1 RICOHGEN6 print heads, with reasonable function distribution, high precision and long service life, 8 colors + white + varnish, rich color and natural transition.
It supports 2-13mm high height printing, and the laser automatically measures the product size to achieve precise positioning and easily and perfectly print products of the opposite sex.
The tilt control button can adjust the tilt according to the shape of the product and reduces the drop for tilted printing.

ADD TO CART

Product Details

UV Printer for Bottles NC-CylinderElf-IV-A

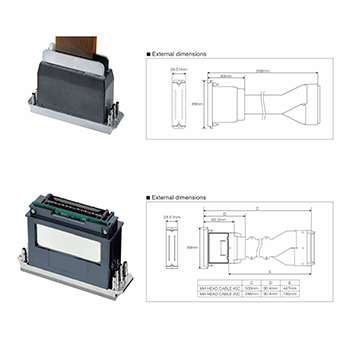

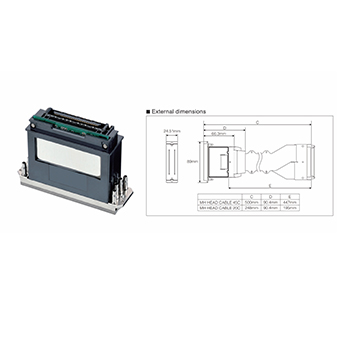

　　RICOH GEN5*3+RICOH GEN6*1 　　Adopting 3 RICOHGEN5 and 1 RICOHGEN6 print heads, with reasonable function distribution, high precision and long service life, 8 colors + white + varnish, rich color and natural transition.

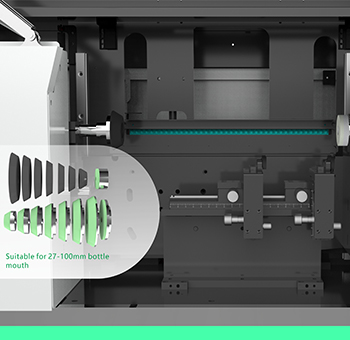

The multi-diameter cylinder jig can meet the printing needs of a variety of products. The bottle adjustable jig is equipped with scale adjustment for more convenient operation.

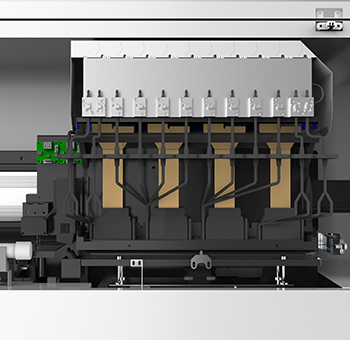

The use of negative pressure ink supply system makes the ink supply more stable. Lift ink station design, accurately control the head position, all-round protection of the print head.

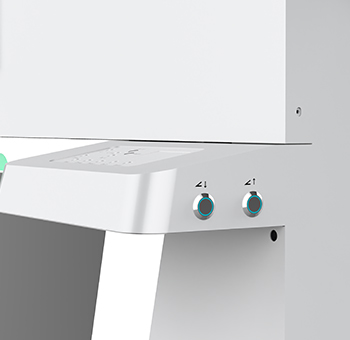

The tilt control button can adjust the tilt according to the shape of the product, reduce the drop, and achieve tilt printing.

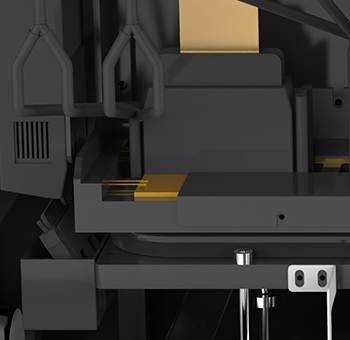

The secondary ink cartridge and bottom plate with heating function, intelligent temperature control, so that printing more secure.

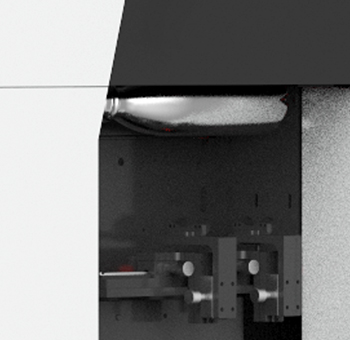

The laser auto-matically measures the product size to achieve precise po-sitioning and easily and perfectly print products of the opposite sex.

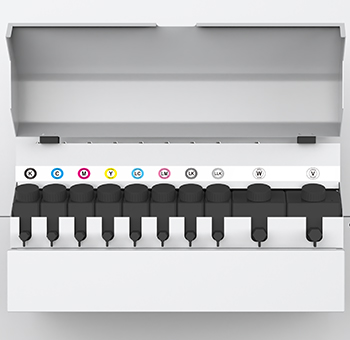

Automatic alarm for lack of ink, easy to add ink.

Parameter

Print head	Nozzle spray force range	Print length
RICOH GEN5*4	2-13mm	80-280mm
Cylinder/cone printing diameter range	Taper printing range	Print version
Φ45-160mm	＜5°	White and color and varnish print at same time
Print mode	Print resolution	Printer dimension
CMYKLcLmLkLlk＋W+V	720900dpi/7201200dpi	1631mm915mm1465mm
N.W.	Packing size	G.W.
310KG	2.2m1.17m1.74m	400KG
Rip software	Print speed range	Graphic format
RIIN	30s-3min/pcs	Tiff,Jpg,Eps,Pdf,Png,AI
Connection method	Power	Rated power
Network cable	AC220V±10，50HZ~60HZ	1500W
Working environment	operating conditions	Ink type
Temperature:20℃-28℃ Humidity:35%-65%	Avoid dusty environments,Avoid direct sunlight	Environmentally friendly UV curing ink

Share & Save this article

Description

15 years of strong brand, original manufacturer. The high-speed thermos cup digital inkjet printer independently developed by Nocai can realize 360° rotation printing and supports seamless, 5D relief, high drop and other forms of printing. The printing speed is as fast as 30 seconds per piece.
