UV Flated Printer|NC-DLP-120|Water-based label printer
Major Advantages

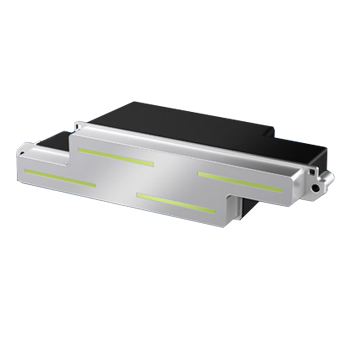

- Equipped with 4 Epson S3200-A1 print heads which can reach up to 2400dpi with high printing precision.
- Variable data printing enables intelligent printing of variable elements such as barcodes and serial numbers, reducing the time cost of sorting one by one.

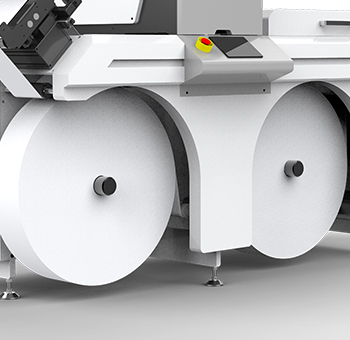

- Full resolution printing speed up to 20 meters / minute, to meet the needs of mass production label printing. Roll-to-roll intelligent paper collection, efficient and fast.

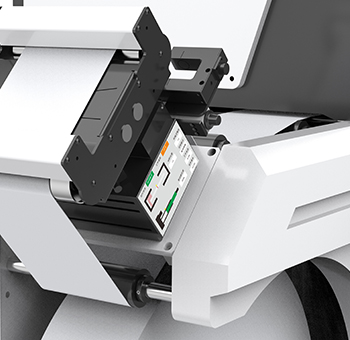

- When the edge sensor detects that the material is skewed, it can automatically correct the skew and reduce the printing error.

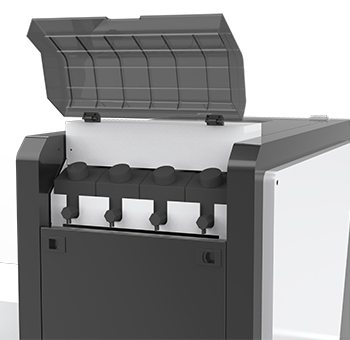

- Equipped with high-performance water-based ink, the color is bright, the true color is delicately restored, and it is water-resistant, wear-resistant, and environmentally friendly.
ADD TO CART
Product Details
Parameter
Printhead configuration | Print resolution | Ink type |
Epson I3200-A1 print head*4 | 1200X600dpi / 1800X600dpi / 2400X600dpi | Water-based ink |
Cartridge capacity | Effective printing width | Paper handling |
1000ml/piece | 0-120mm | Roll to roll |
Applicable materials | Material thickness | Roll paper specifications |
Coated paper, art paper, high quality paper | 0.2-0.5mm | Weight:Within 100kg;Width:Within 190mm;Diameter:Within 780mm (76mm/3-inch paper reel) |
Interface Type | Voltage | Rated power |
Ethernet cable | AC220V,50HZ~60HZ | 3500W |
Print version | Print mode | Printing speed |
Only color printing | CMYK | 5-20 meters/minute |
Rip software | Graphic format | Printer dimension |
FlexiPRINT MiniServer 19 Nocai Edition | Tiff/Jpg/Eps/Pdf/Png/AI | 2475mm*1053mm*1687mm |
N.W. | Packing size | G.W. |
Working environment | Noise | |
Temperature:20℃-30℃ Humidity:40%-80% (no gel) | Below 75dB |
Description
Nocai digital inkjet label printing machine,High precision: With 4 pcs of I3200-A1 print heads, the precision can reach 1200dpi;Fast speed: With original print head splicing technology, speed up to 20 m/min when do full resolution printing;
Characteristic: Low printing cost, duarable using print head, and with the water and wear resistance ink.
