UV Flated Printer-NC-DLP-120-UV label printer

Major Advantages

Variable data printing enables intelligent printing of variable elements such as barcodes and serial numbers, reducing the time cost of sorting one by one.
Full resolution printing speed up to 20 meters / minute, to meet the needs of mass production label printing. Roll-to-roll intelligent paper collection, efficient and fast.
When the edge sensor detects that the material is skewed, it can automatically correct the skew and reduce the printing error.

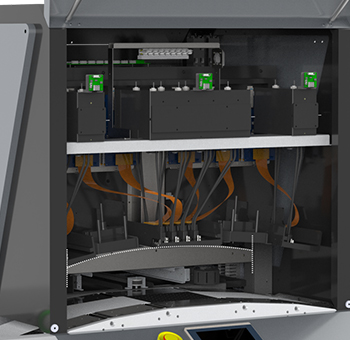

Equipped with 4-6pcs Epson S3200-U1 print heads whose accuracy can reach up to 2400dpi with high printing precision.

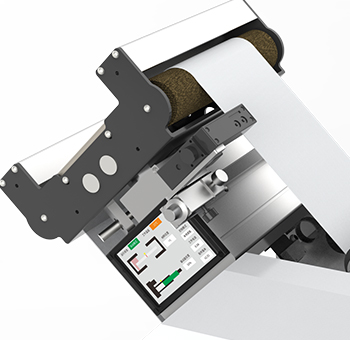

The arc design of the machine head enables smooth paper transmission and stable image output.

ADD TO CART

Product Details

UV Flated Printer-NC-DLP-120-UV label printer

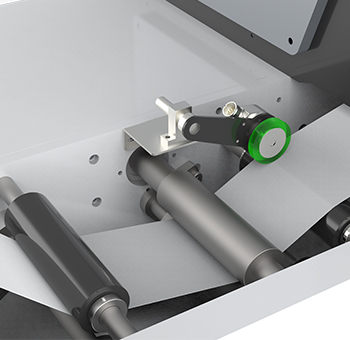

When the edge sensor detects that the material is skewed, it can automatically correct the deviation and reduce printing.

Multi-layer guide design ensures the stable transportation of paper to the printing area

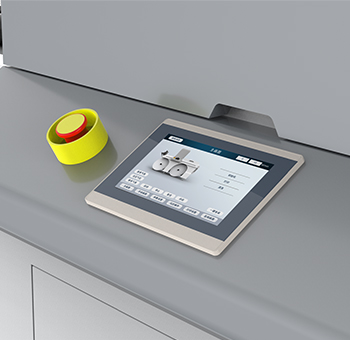

The control panel has various functions and the display is simple and easy to understand.

The arc design of the machine head enables stable image output.

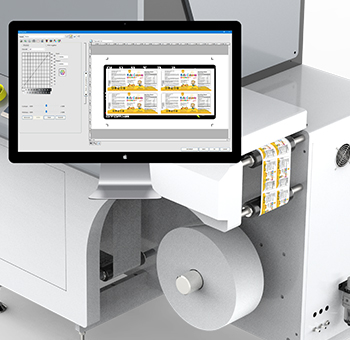

Nocai digital inkjet UV label printing can automatically control color, allowing label printing to achieve accurate color control in every job to meet customer needs.

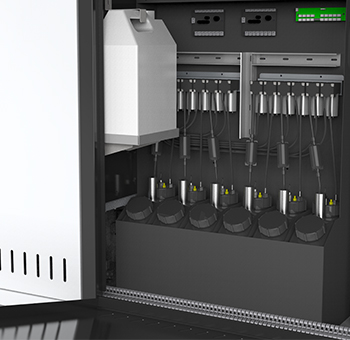

Automatic alarm for lack of ink, easy to add ink.

Parameter

Printhead configuration	Print resolution	Ink type
Epson S3200-U1 print head 4-6 pcs	1200X600dpi / 1800X600dpi / 2400X600dpi	Environmentally friendly UV curing ink
Cartridge capacity	Effective printing width	Paper handling
3500ml/color	0-120mm	Roll to roll
Applicable materials	Material thickness	Roll paper specifications
Coated paper, coated paper, matte paper, high quality paper，P、PE、PET and so on	0.2-0.5mm	Weight：Within 100kg；Width：Within 190mm；Diameter：Within 780mm (76mm/3-inch paper reel)
Interface Type	Voltage	Rated power
Cable	AC220V，50HZ~60HZ	3500W (this needs to be tested for uncertainty)
Print version	Print mode	Printing speed
Color, white color, white color varnish	CMYK/CMYK+W/CMYK+W+V	5-20 meters/minute
Rip software	Graphic format	Printer dimension
FlexiPRINT MiniServer 19 Nocai Edition	Tiff/Jpg/Eps/Pdf/Png/AI	2470mm1065mm1930mm
N.W.	Packing size	G.W.
1200KG	2700mm1300mm2200mm	1300KG
Working environment	Noise
Temperature:20℃-28℃ Humidity:35%-65%	Below 75dB

Description

Nocai digital inkjet label printing machine,High precision: With 4-6 pcs of S3200-U1 print heads, the precision can reach 1200dpi;Fast speed: With original print head splicing technology, speed up to 20 m/min when do full resolution printing;

Characteristic: Low printing cost, duarable using print head, and with the water and wear resistance ink.
