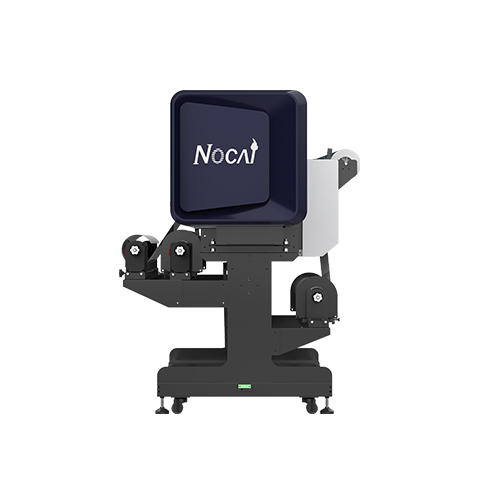

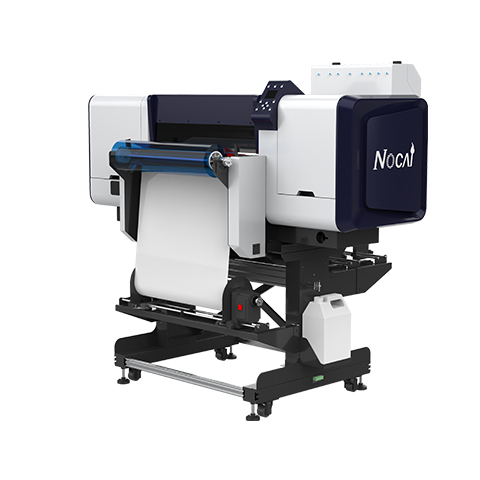

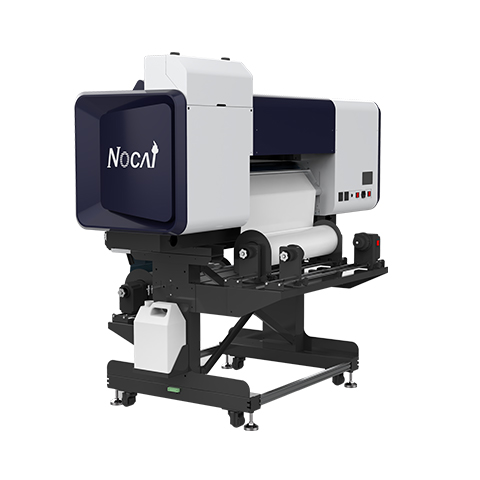

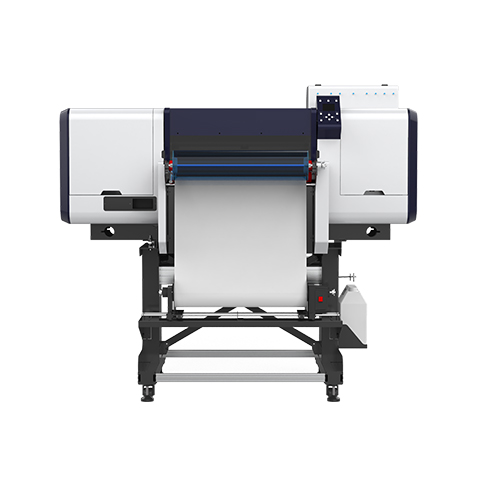

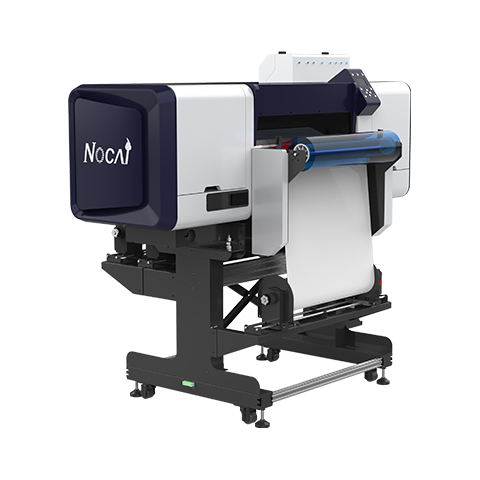

UV DTF printer|NC-UVDTF60（standard version）

Major Advantages

Equipped with 3 Epson I1600-E1 print heads, with an accuracy of up to 1200dpi.
With 60cm printable width, it is suitable for printing on most crystal uv dtf roll films. The winding is integrated, and the material can be torn, printed, laminate, and retracted at the same time, saving time and labor costs.
It supports white，color and varnish printing, prints 3D relief effects easily without color restrictions, the pattern is bright, clear and lifelike with good quality.
Whether it is a logo label or a gradient pattern, varnish effects, hot stamping/silvering and other effects can be achieved, meeting the customer needs of various types of personalized customization. It is suitable for various shapes products and various materials with highly flexible.
Intelligent control panel, easy to operate. Testing, cleaning, printing, etc. can be done with just one click. The intelligent UV DTF laminating machine developed by Nocai independently has the characteristic of stable and efficient lamination.

ADD TO CART

Product Details

UV DTF printer|NC-UVDTF60（standard version）

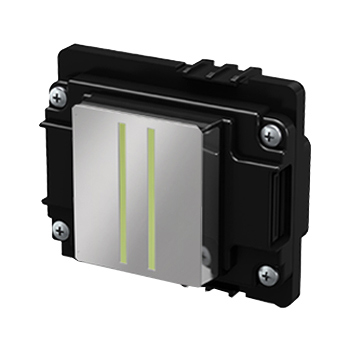

Equipped with 3 Epson I1600-E1 print heads, the accuracy can reach up to 1200dpi, and the printing quality is exquisite

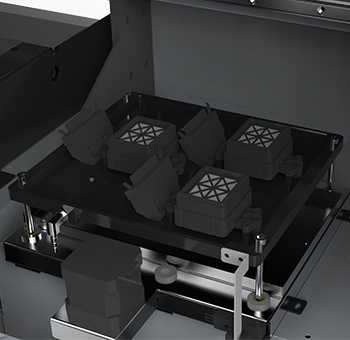

Lift ink station design can control the head position accurately, all-round protection of the print head.

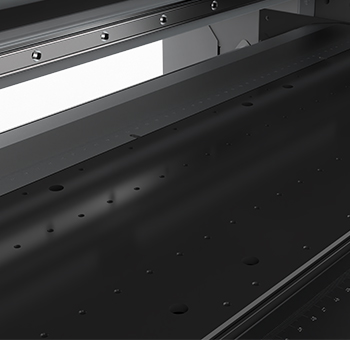

Suction platform can help the coil products more flat and ensure the continuity and stability of the printing process.

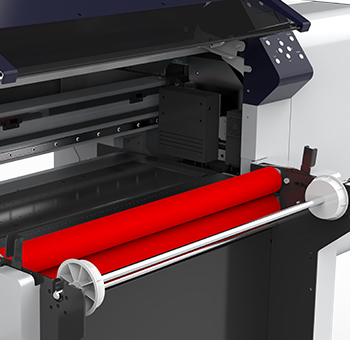

The intelligent UV DTF laminating machine independently developed by Nocai has the characterictic of stable and efficient lamination.

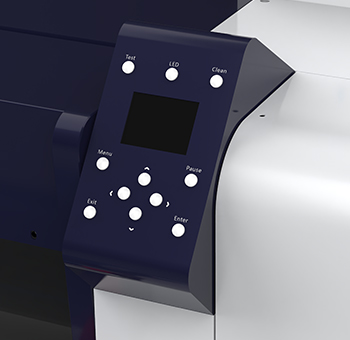

The control panel has various functions and the operation is simple and easy to understand.

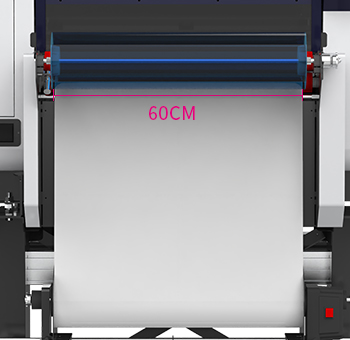

60cm width can satisfy most of the format and graphic needs. Tear film, print, golden stamp and take back material can be achieved at one time, which saves time and labor cost.

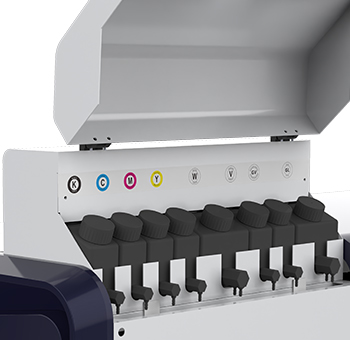

Automatic alarm for lacking of ink, easy to add ink.

Parameter

Printhead configuration	Nozzle spray force range	Print size
Epson I1600-E1*3	2-3mm	60cm
Print height	Print version	Print mode
0-2mm	White and color and varnish print at same time	KCMY+W+V
Print resolution	Printer dimension	N.W.
960x1200dpi / 960x900dpi	1071mm1728mm1535mm	280kg
Packing size	G.W.	Rip software
1474mm2204mm1100mm	350kg	Future RIP
Application	Print speed	Graphic format
Crystal label UV DTF film	3.2-6m/h	Tiff,Jpg,Pdf
Connection method	Power	Rated Power
Network cable	AC220±10，50HZ~60HZ	Max. 330W
Laminating Temperature	Working environment	Ink type
60-120℃	Temperature:20℃-28℃ Humidity:35%-65%	UV DTF film specialized uv cured ink

Description

Nocai 60cm UV DTF laminating all-in-one machine has the characteristics of fast speed, high precision and strong stability. It can also print a label/LOGO. It has a wide range of available materials, high flexibility and simple operation.
Printing and laminating are integrated, and automatic laminating and winding, reducing human labor and improving production efficiency.
