NC-UV60-Nuocai Product Detailed Information – UV Flated Printer

Major Advantages

1.The AI intelligent visual positioning system uses multiple high-definition cameras to scan the contour texture of the material accurately, and the automatic positioning accuracy error is ±0.1mm, which is convenient and fast to operate.

2. 4 high-precision, durable and imported print heads. Primer can be sprayed out directly to enhance adhesion, which can save time and labor. The highest precision can reach 1200dpi, high color reproduction, and it can achieve embossed brightness, frosted and other effects to meet the needs of customers with different printing effects.

3.There is no need to typeset, and the assembly line can be printed while scanning, which save time and labor costs. At the same time, it is compatible with a variety of products. There is no need to customize fixtures, and it can save additional costs.

4.All-steel integrated structure design, strong stability. High-strength industrial belt, the accuracy of the platform is less than 5 wires, and equipped with suction function, which make printing and transmission stable.

5.It can not only scan and print on flat material, but also can achieve roll-to-roll printing function through external material receiving fixtures. And the winding method is not limited by materials, which is suitable for outdoor PP, PP adhesive, light sheet, lamp cloth, canvas, reflective film, car sticker, PVC soft film and other coils.

ADD TO CART

Product Details

NC-UV60-Nuocai Product Detailed Information – UV Flated Printer

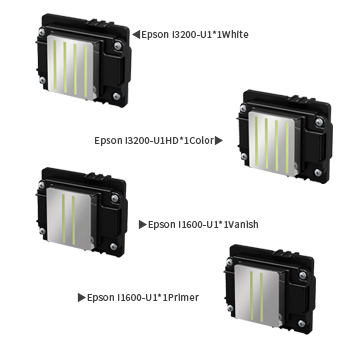

8 color ,white ,varnish and primer make the printing color with high saturation and bright color. The primer can also be sprayed to the material directly, which can intensify the adhesion and save time and labor.

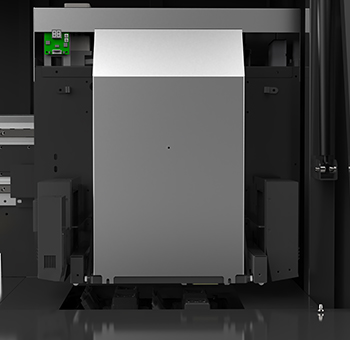

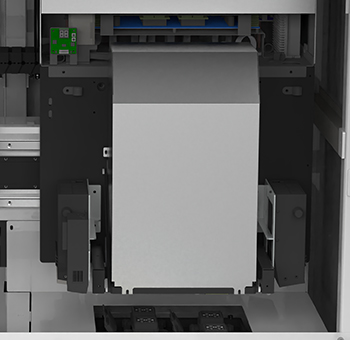

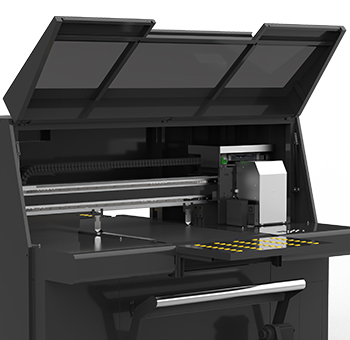

The design of the lifting type ink station controls the position of the head accurately and protects the printhead in all directions.

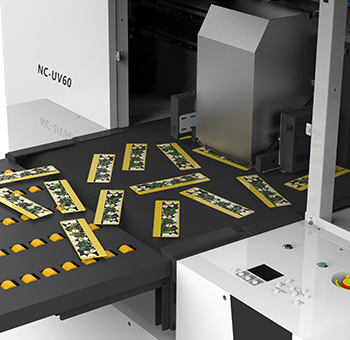

There is no need to typeset, and the assembly line can be printed while scanning, which save time and labor costs.

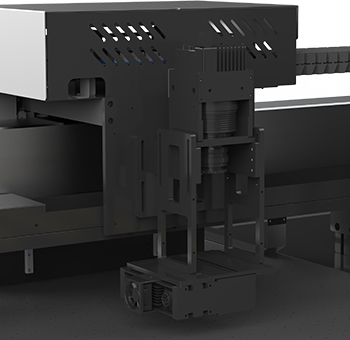

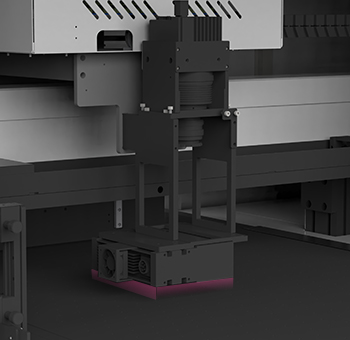

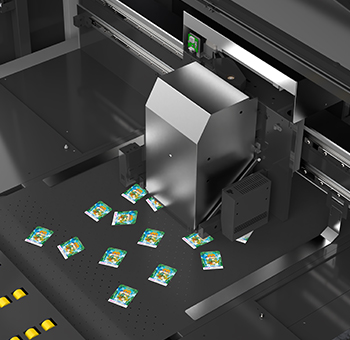

The AI intelligent visual positioning system uses multiple high-definition cameras to scan the contour texture of the material accurately, and the automatic positioning accuracy error is ±0.1mm, which is convenient and fast to operate.

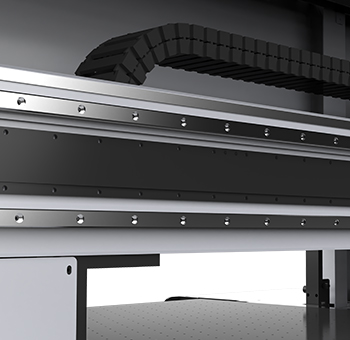

High-strength industrial belt, the accuracy of the platform is less than 5 wires, and equipped with suction function, which make printing and transmission stable.

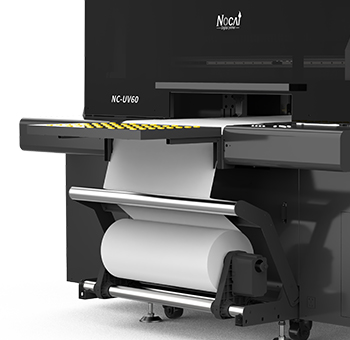

It can not only scan and print on flat material, but also can achieve roll-to-roll printing function through external material receiving fixtures.

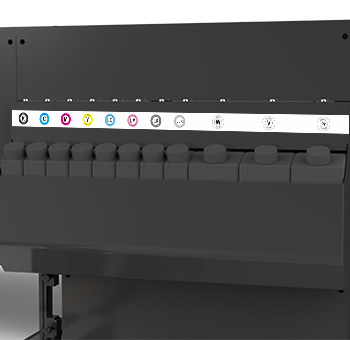

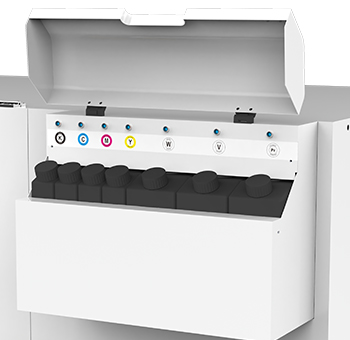

Automatic alarm for lacking of ink, easy to add ink.

Parameter

Print head	Size	Positioning accuracy
Epson I3200-U11White Epson I3200-U1HD1Color Epson I1600-U11Varnish Epson I1600-U11 Primer	600mm*infinitely	0.1mm
Recognition system	Print mode	Thickness
Ink head scanning vision	Cycle step mode while scanning	0-100mm
Print resolution	Print mode	Applicable materials
720900dpi / 7201200dpi	CMYK Lc Lm Lk Llk+W+V+Pr	Glass, plastic,acrylic,metal and wood.
Print speed	Software	Print format
1.23-2 square/hour	FlexiPRINT MiniServer 22 Nocai Edition	Tiff,Jpg,Pdf
Printer dimension	N.W.	Packing size
2290mm2000mm1505mm	575kg	2100mm1700mm1670mm
G.W.	Connection method	Voltage
700KG	Network cable	AC220V，50HZ~60HZ
Rated power	Working environment	Ink type
380W	Temperature25℃-28℃;Humidity：35%-65%	Environmentally friendly UV curing ink

Description

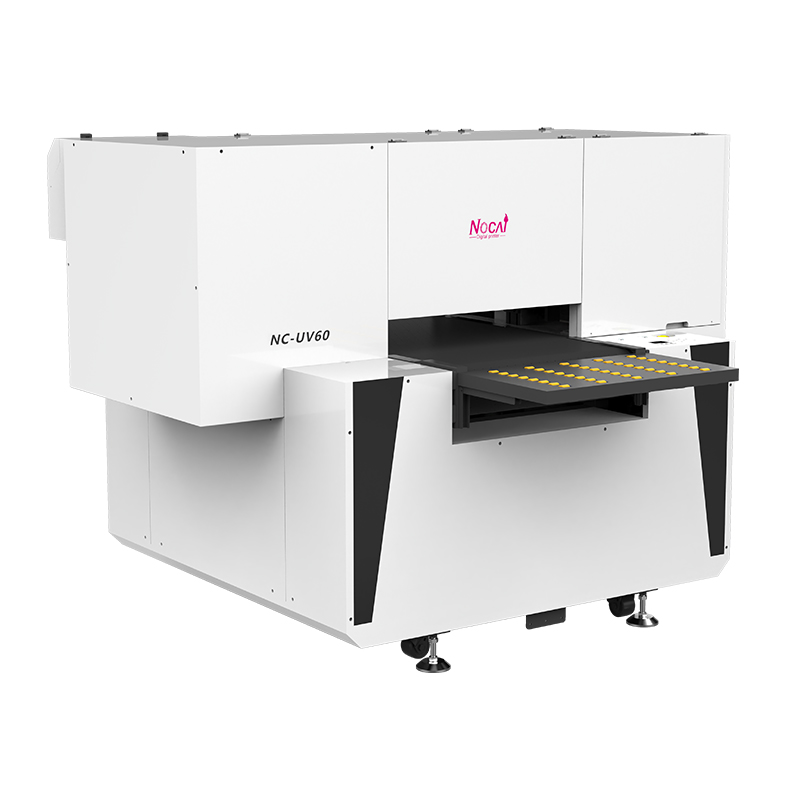

Nocai streamlined Ai vision UV printer does not need to print frames, and all kinds of special-shaped materials are placed on the platform for automatic identification. The mode of printing while scanning can save time and labor costs. Primer, white, color and varnish can be printed at the same time, which not only increases the adhesion of the product, but also solves the pain points such as uneven manual application and sticky dust for a long time, and improves the yield of the product greatly. The accuracy can reach up to 1200dpi, and the color reproduction is high. All-steel integrated structure design, strong stability. One machine has multiple purposes, and the external material receiving fixture can be used to achieve roll-to-roll printing.
