NC-UV2513-Nuocai Product Detailed Information – UV Flated Printer

Major Advantages

1.2-8 RICOHGEN6 printheads can be freely selected, the minimum ink drop is 5PL, and the accuracy can reach up to 2400dpi. The industrial print head has long service life, and the printing speed can reach up to 32.8㎡/h, making it easy to achieve mass production.

2.2500X1300mm printing format, 0-240mm printing height can meet the printing needs of multi-industry. It comes with a honeycomb aluminum suction platform, which has high strength and is not easy to deform. It also has uniform negative pressure and is durable.

3.The X-axis adopts double-row linear guide rails, which makes the printing more stable and ensures higher printing accuracy. For the selection of product materials, Nuocai not only considers the quality but also pays attention to the adaptability, so that the printer has a more stable output during operation.

3.The negative pressure ink supply system is used to make the ink supply more stable, and the secondary ink cartridge and bottom plate have heating function, intelligent temperature control, so that the printing is more secure.

4.It is suitable for printing various types of materials, such as: glass, wood, PVC, foam board, metal, ceramic, etc. It is mainly used in advertising, packaging, home decoration, 3C digital products and other industries.

ADD TO CART

Product Details

NC-UV2513-Nuocai Product Detailed Information – UV Flated Printer

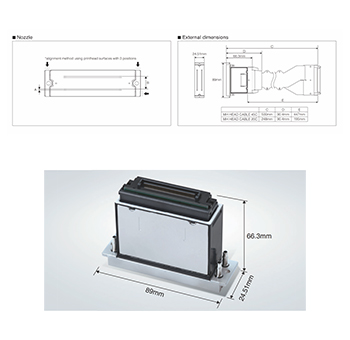

2-8 RICOHGEN6 printheads can be freely selected, the minimum ink drop is 5PL, and the accuracy can reach up to 2400dpi. The industrial print head has long service life, and the printing speed can reach up to 32.8㎡/h, making it easy to achieve mass production.

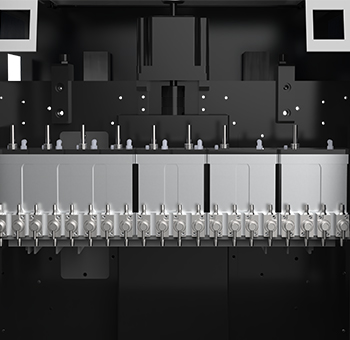

The negative pressure ink supply system is used to make the ink supply more stable, and the secondary ink cartridge and bottom plate have heating function, intelligent temperature control, so that the printing is more secure.

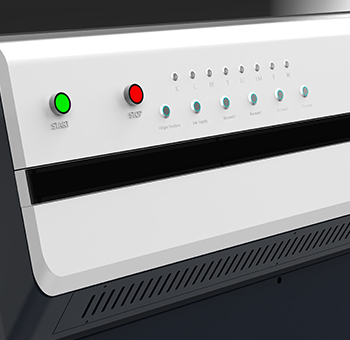

Intelligent control button, multi-functional, simple and easy-to-understand display, test, cleaning, ink level prompt and other functions can be easy to operate.

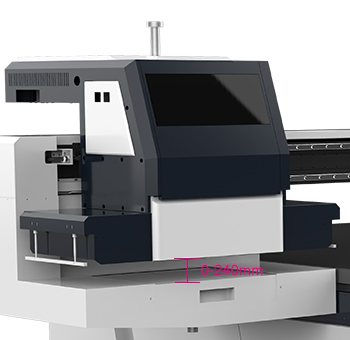

The printing height of 0-240mm can meet the printing needs of products of different thicknesses. It is suitable for a variety of product specifications and materials, with a wide range of applications.

2500X1300mm printing format，meet the printing needs for different industries，with suction platform can make the material flat.

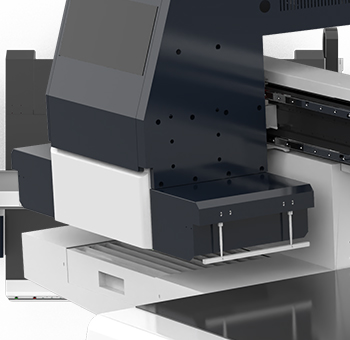

The print head is equipped with an intelligent touch and anti-collision sensing device. The ink truck stops automatically after being touched, thus protecting the print head and printing materials.

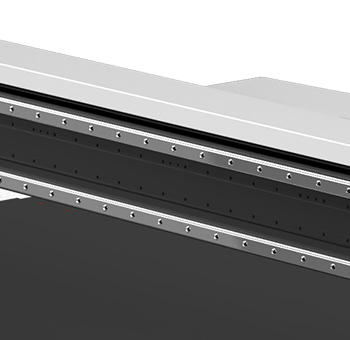

X-axis adopts double-row linear guides,which makes printing more stable and ensures printing accuracy.

Parameter

Print head	Nozzle spray force range	Print size
RICOH GEN6*2-8（optional）	2-3mm	2500*1300mm
Print height	Print version	Print mode
0-240mm	white ,color and varnish come out at the same time	C、M、Y、K、Lc、Lm、W、V (free combination)
Maximum resolution	Printer dimension	N.W.
2400dpi	2010mm4255mm1580mm	1300KG

Packing size	G.W.	Rip software
/	/	RIIN/PP
Print speed	Graphic format	Connection method
Standard mode：32.8㎡/h Production mode：24.1㎡/h High-precision mode：16㎡/h	Tiff/Jpg	Gigabit Ethernet cable
Power	rated power	Working environment
AC220(±5%)，50Hz	6.8KW	18°C～30°C（64°F~86°F）
Requirements	Ink type
Independent, clean, low-dust, low-light, well-ventilated workspace	Environmentally UV curing ink

Description

The newly launched NC-UV2513 large-format flatbed UV printer is designed for the excellent printing quality and the highest production efficiency, with high precision, fast speed and wide application. It is suitable for various materials, such as: glass, wood, PVC, foam board, metal, ceramic, leather, etc.
