High speed round bottle printer -NC-CylinderElf-IV-C

Major Advantages

1.NC-Cylinder Elf-IV-C adopts 3 RICOH GEN5I printheads with reasonable function distribution, high precision and long service life, 4 color +white+ varnish.

2.It supports 13mm high height printing, and the laser auto-matically measures the product size to achieve precise po-sitioning and easily and perfectly print products of the opposite sex.

3.The printing length is 80-280mm and the printing diameter is 45-160mm, which can meet the needs of various types of products such as thermos cups and pots, cylindrical electr-onic products, wine bottles, etc., and has a wide range of applications.

4.The fourth-generation digital inkjet printer for thermos cups adopts spiral printing technology and produces 360° white varnish at the same time. The printing speed is as fast as 30 seconds per piece, which is suitable for mass production mode.

5.The tilt control button can adjust the tilt according to the shape of the product, reduce the drop, and achieve tilt printing.

ADD TO CART

Product Details

High speed round bottle printer -NC-CylinderElf-IV-C

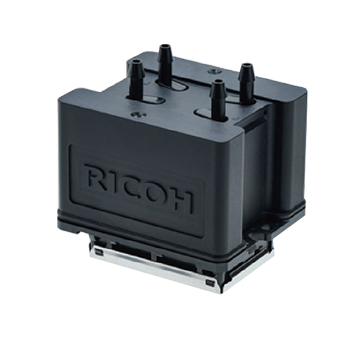

NC-Cylinder Elf-IV-C adopts 3 RICOH GEN5I printheads with reasonable function distribution, high precision and long service life, 4 color +white+ varnish.

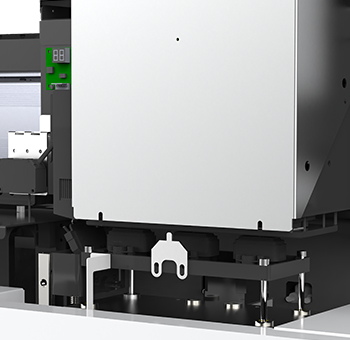

Lift ink station design, accurately control the head position, all-round protection of the print head.

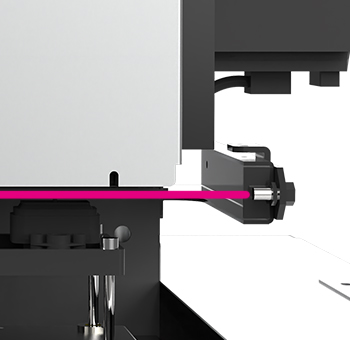

The head is equipped with infrared anti-collision sensor, the ink cart stops after touching automatically.

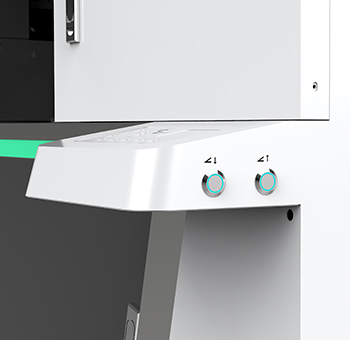

The tilt control button can adjust the tilt according to the shape of the product, reduce the drop, and achieve tilt printing.

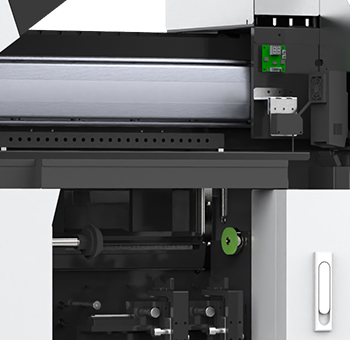

The design of the flying ink device can clean up the flying ink caused by the printing drop in time and effectively improve the printing effect.

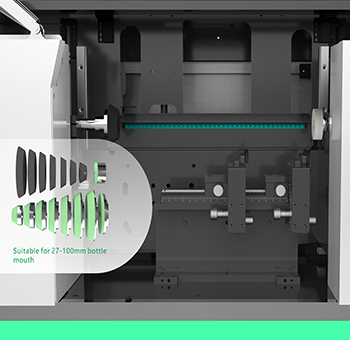

The multi-diameter cylinder jig can meet the printing needs of a variety of products. The bottle adjustable jig is equipped with scale adjustment for more convenient operation.

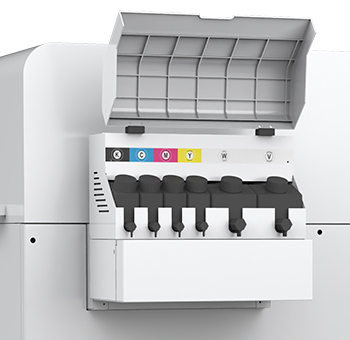

Automatic alarm for lack of ink, easy to add ink.

Parameter

Print head	Nozzle spray force range	Print length
RICOH GEN5I*3	2-13mm	80-280mm
Cylinder/cone printing diameter range	Taper printing range	Print version
Φ45-160mm	＜5°	White and color and varnish print at same time
Print mode	Print resolution	Printer dimension
CMYK＋W+V	960*1200dpi	1320mm915mm1340mm
N.W.	Packing size	G.W.
240KG	1.75m1.12m1.65m	370KG
Rip software	Print speed range	Graphic format
RIIN	30s-3min/pcs	Tiff,Jpg,Eps,Pdf,Png,AI
Connection method	Power	Rated power
Network cable	AC220V±10，50HZ~60HZ	1500W
Working environment	operating conditions	Ink type
Temperature:20℃-28℃ Humidity:35%-65%	Avoid dusty environments,Avoid direct sunlight	Environmentally friendly UV curing ink

Description

Nuocai studies the high-speed thermals cups inkjet printer independently, which can realize 360 degree rotation printing. Seamless, 5D relief and high-drop are all available. The printing speed can reach up to 30 seconds/pc.
