High speed round bottle printer -NC-CylinderElf-IV-B

Major Advantages

1. Equipped with 4 Epson I1600-U1 print heads, 8-color printing, highly reproduces the true color of images.
2. 2-7mm high-drop printing is available, laser measure the shape of the product automatically, in orsder to achieve accurate positioning, which is very easy to solve the printing needs of shaped products.
3.80-280mm of printing length, 45-160mm of printing diameter, which can be widely used to meet a wide range of applications such as the thermal insulation cups and jugs, column-shaped electronic products, wine bottles and other types of products.
4. Adopting spiral printing technology, 360°white color varnish comes out at the same time, and the printing speed is as fast as 30 seconds/pc, which is suitable for mass production mode.
5.The tilt control button can adjust the tilt according to the shape of the product and reduces the drop for tilted printing.

ADD TO CART

Product Details

High speed round bottle printer -NC-CylinderElf-IV-B

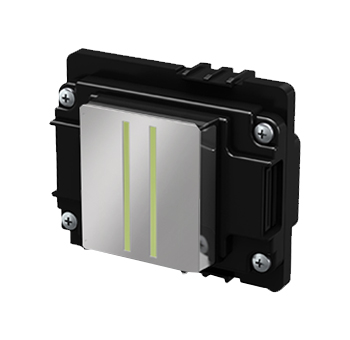

Equipped with 3 Epson I1600-U1 print heads, the accuracy can reach up to 1200dpi, and white varnish is produced at the same time, and the printing quality is exquisite

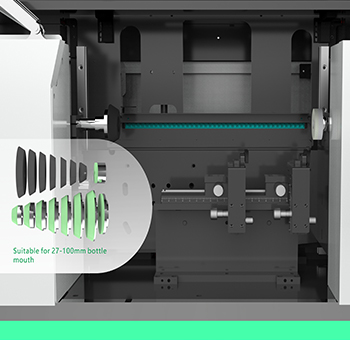

The multi-diameter cylinder jig can meet the printing needs of a variety of products. The bottle adjustable jig is equipped with scale adjustment for more convenient operation.

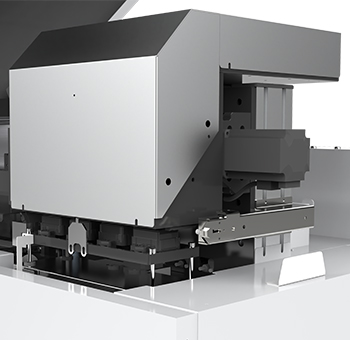

Lift ink station design, accurately control the head position, all-round protection of the print head.

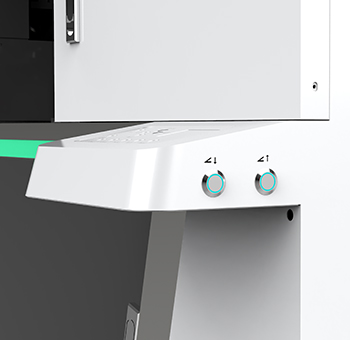

The tilt control button can adjust the tilt according to the shape of the product, reduce the drop, and achieve tilt printing.

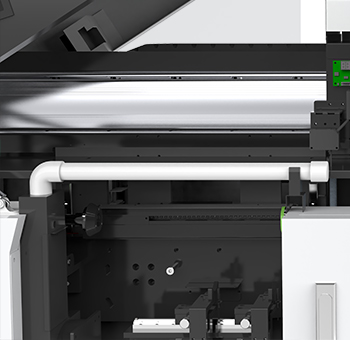

The design of the flying ink device can clean up the flying ink caused by the printing drop in time and effectively improve the printing effect.

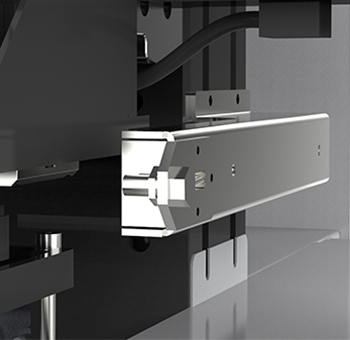

The head is equipped with infrared anti-collision sensor, the ink cart stops after touching automatically.

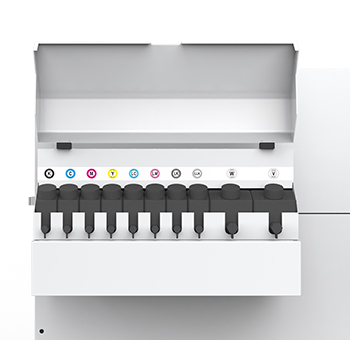

Automatic alarm for lack of ink, easy to add ink.

Parameter

Print head	Nozzle spray force range	Print length
Epson I1600-U1*4	2-7mm	80-280mm
Cylinder/cone printing diameter range	Taper printing range	Print version
Φ45-160mm	＜5°	White and color and varnish print at same time
Print mode	Print resolution	Printer dimension
CMYKLcLmLkLlk＋W+V	720900dpi/7201200dpi	1320mm915mm1340mm
N.W.	Packing size	G.W.
270KG	1.75m1.12m1.65m	370KG
Rip software	Print speed range	Graphic format
RIIN	30s-3min/pcs	Tiff,Jpg,Eps,Pdf,Png,AI
Connection method	Power	Rated power
Network cable	AC220V±10，50HZ~60HZ	1100W
Working environment	operating conditions	Ink type
Temperature:20℃-28℃ Humidity:35%-65%	Avoid dusty environments,Avoid direct sunlight	Environmentally friendly UV curing ink

Description

16 years power brand, source manufacturer. Nuocai research and develop the cost-effective thermo cups digital inkjet printer independently, which can realize 360 ° rotary printing and support 2-7mm high-drop printing, seamless, embossed and other forms of printing. The printing speed is as fast as 30 seconds /piece.
