High speed printer|NC-Cyclone-400
Major Advantages

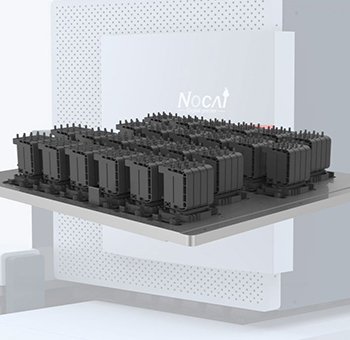

- 24-head splicing technology, white color and varnish will be dry at one time, and the relief effect can be easily achieved.
- Supports 2-15mm high drop printing.

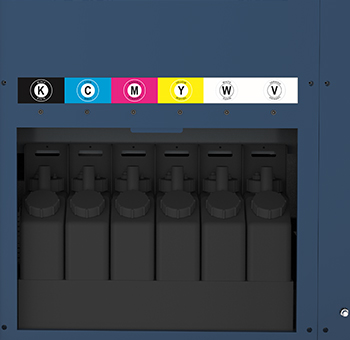

- Original three-level ink cartridge negative pressure ink supply system ensures smooth ink supply.
- Fast printing speed, bidirection printing only takes 8 seconds.

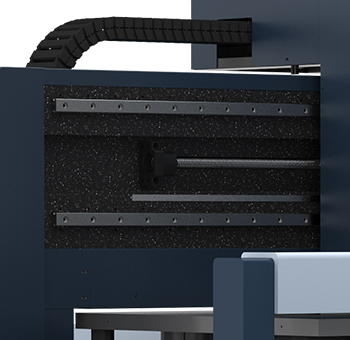

- The body is made of natural marble material, which is durable and highly stable.
ADD TO CART
Product Details
Parameter
Print head configuration | Print head ejection force range | Rip software |

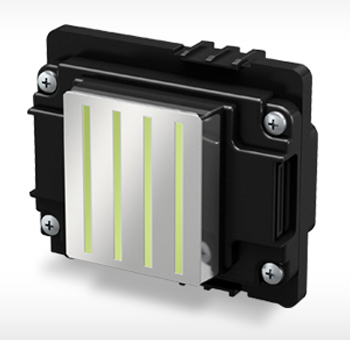

EPSON S3200-U1*24 | 2-15mm | RIIN |
Print speed | Print resolution | Print size |
9.27sqm/h-26.50sqm/h | 960*2400dpi | 370*600mm |
Print version | Print mode | Print height |
White and color and varnish print at same time | CMYK+W/CMYK+W+V | 0-50mm |
Printer dimension | N.W. | Packing size |
2630mm*1630mm*1710mm | 1700KG | 2.8m*1.8m*2m |
G.W. | Power | Working environment |
1800KG | AC220V±10,50HZ~60HZ | Temperature:20℃-28℃;Humidity:35%-65% |
Connection method | Ink type | Printer type |
USB | Environmental UV curing ink | Digital inkjet printer |
Description
NC-Cyclone-400 has the advantages of strong stability, fast speed, diverse functions and wide application. Supports high height printing of 2-15mm, and white varnish is formed in one go. The printing speed is fast, bidirectional printing only takes 8 seconds, which is very suitable for mass production. Widely used, suitable for gifts, handicrafts, stationery, toys and other industries.
