High-speed digital UV inkjet printer NC-Cyclone-120

Major Advantages

Equipped with 8 pieces Epson S3200-U1 print heads, print head splicing technology to achieve one pass printing.
Fully automatic platform, stable feeding, speed reaches to 17 meters/minute, suitable for assembly line mass production.
Variable data printing enables intelligent printing of variable elements such as barcodes and serial numbers, reducing the time cost of sorting one by one.
120mm printing width, suitable for most products printing.
Pull-out ink station design accurately controls the head capping position. Better protection of the print head in all aspects, making it safer to use.

ADD TO CART

Product Details

High-speed digital UV inkjet printer NC-Cyclone-120

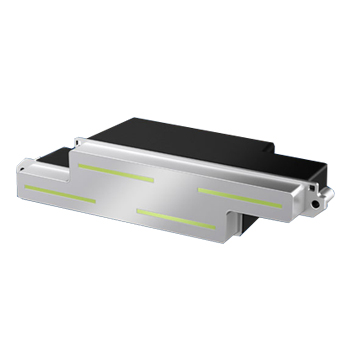

Equipped with 8 Epson S3200-U1 print heads, and print head splicing technology to achieve onepass printing.

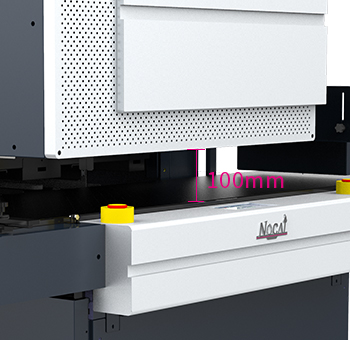

The printing height of 0-100mm can meet the printing needs of products of different thicknesses. It is suitable for a variety of product specifications and materials, with a wide range of applications.

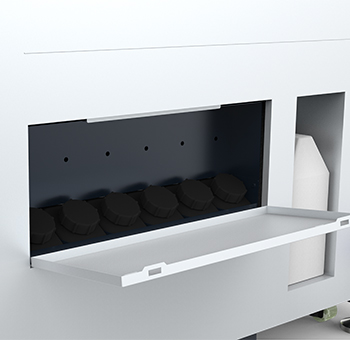

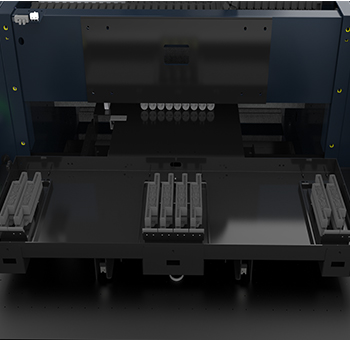

Pull-out ink station design accurately controls the head capping position. Better protection of the print head in all aspects, making it safer to use.

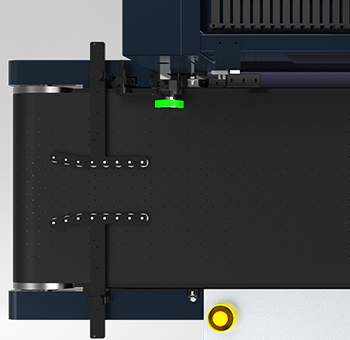

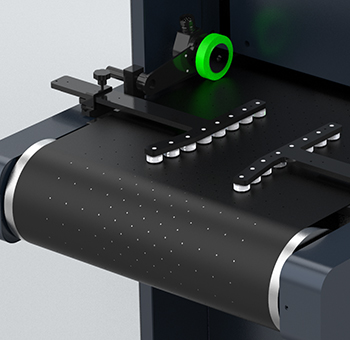

It can meet the printing width of most areas on the market without format concerns. The guide position can be adjusted according to the product and is easy to operate.

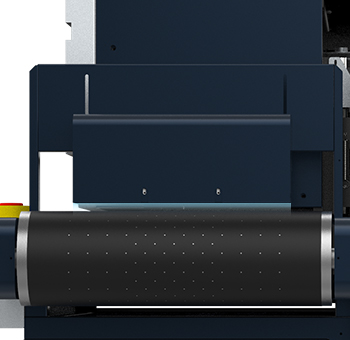

The air suction platform helps the product to be better placed on the platform to ensure the printing effect.

Fully automatic conveying platform, stable feeding, adjustable speed, as fast as 17 meters/minute, suitable for assembly line mass production.

Automatic alarm for lack of ink, easy to add ink.

Parameter

Print head configuration	Print head ejection force range	Print resolution
EPSON S3200-U1*8	2-3mm	1200600dpi / 1800600dpi
Ink type	Tank volumn	Effective printing range
Environmentally friendly UV curing ink	1000ml/color	120mm
Maximum material width	Print thickness	Applicable materials
380mm	0-100mm	Plastic, glass, acrylic, metal, wood, etc.
Interface Type	Voltage	Rated power
Cable	AC220V，50HZ~60HZ	3900W
Printing method	Print mode	Print speed range
one pass	CMYK+W+V	17m/min
Printing software	Graphic and text format	Machine size
FlexiPRINT MiniServer 19 Nocai Edition	Tiff,Jpg,Eps,Pdf,Png,AI	1405mm1947mm1560mm
Net weight	Packaging size	Gross weight
440KG	1600mm2150mm2000mm	540KG
Working environment	operating conditions	Noise
Temperature:20℃-28℃ Humidity:35%-65%	Avoid dusty environments,Avoid direct sunlight	75dB

Description

The latest Onepass high-speed UV digital inkjet printer launched by Nocai which has the characteristics of fast printing speed and wide application. Its speed can reach 17 meters/minute. It does not require plate making, not subject to color restrictions, and realizes the intelligence of variable elements such as barcodes and serial numbers. Printing with higher printing quality and faster delivery time, enhances the competitive advantage of customer brands.
