uv printing NC-UV9060MAX

Major Advantages

1.Four precise, durable and original imported printheads are adopted. Spray to the primer directly , strengthen the products adhesion. Save time and labor when sparying evenly. High saturation and bright color can realize through 8 color printing. Relief effect, glossy and frosted effect appear at the same time, which can meet different customers needs.

2.High-definition camera scanning，precise recognition of material contour texture;integration for visual software system，change the history of sets of software interaction, easy and fast operation;the images can locate automatically and accurately，the recognition error is controlled within ±0.1mm。

3.Controlled by intelligent software which supports 2-12mm high drop printing, reducing the flatness requirements of printing media and meeting the uneven surface printing requirements of some products.

4.Printing space can reach up to 180mm and platform format is 900*600mm. It satisfies multiple industries printing needs; UV printing is not restricted to material and easy to achieve personalized customization.

5.The chassis of the aluminum alloy mold opening and assembly molding machine is aligned by a CNC milling machine, and the machining accuracy of the guide rail surface is controlled within 0.02mm. Its materials are solid, not easy to deform, and has high stability.

ADD TO CART

Product Details

8 color ,white ,varnish and primer make the printing color with high saturation and bright color. The printer can also spray to the primer directly, which can intensify the adhesion and save time and labor.

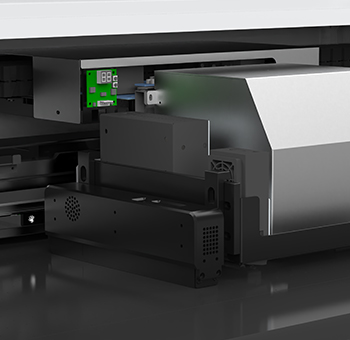

High definition camera scanning, precise recognition of material contours and textures, integration of visual software system, changing the interaction history of multiple software sets, easy and convenient operation.

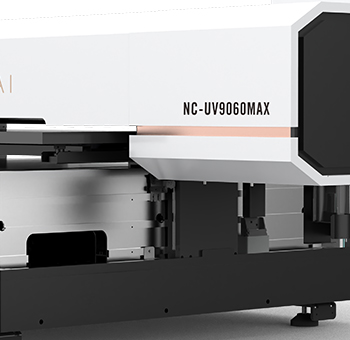

The chassis of the aluminum alloy mold opening and assembly molding machine is aligned by a CNC milling machine, and the machining accuracy of the guide rail surface is controlled within 0.02mm. Its materials are solid, not easy to deform, and has high stability.

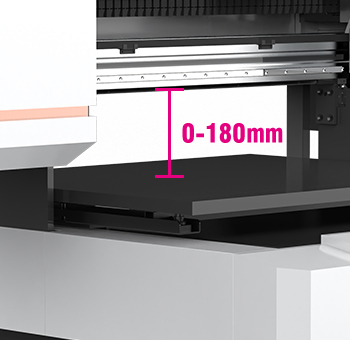

Printing space can reach up to 180mm and platform format is 900*600mm. It satisfies multiple industries printing needs.

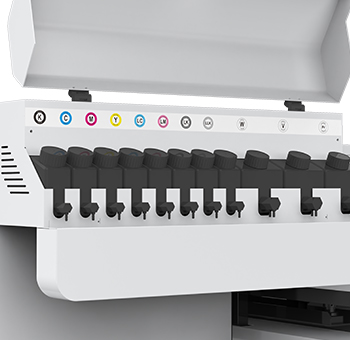

Automatic alarm for lacking of ink, easy to add ink.

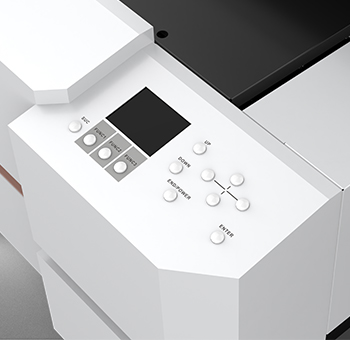

The left and right stretching design of the operation panel avoids operational errors caused by the plate table which will block the panel during machine operation, improving the user experience.

Controlled by intelligent software which supports 2-12mm high drop printing, reducing the flatness requirements of printing media and meeting the uneven surface printing requirements of some products.

Parameter

Print head	Nozzle spray force range	Print size

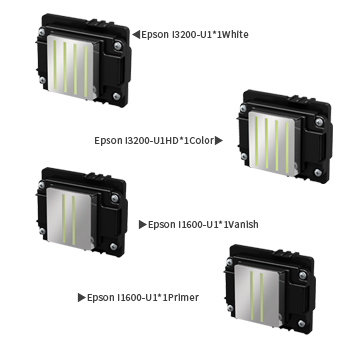

Epson I3200-U11White Epson I3200-U1HD1Corlor Epson I1600-U11Vanish Epson I1600-U11 Primer	2-12mm	900mm*600mm
Print height	Print version	Print mode
0-180mm	Primer, white ,color and varnish come out at the same time	CMYKLcLmLkLlk+W+V+Pr
Print resolution	Printer dimension	N.W.
720900dpi / 7201200dpi	2000mm1355mm790mm	250KG
Packing size	G.W.	Rip software
2190mm1700mm990mm	450KG	FlexiPRINT MiniServer 22 Nocai Edition
Print speed	Graphic format	Connection method
1.23-2 square/h	Tiff,Jpg,Eps,Pdf,Png,AI	cable
Power	rated power	Working environment
AC220/110V±10，50HZ~60HZ	470W	Temperature:20℃-28℃ Humidity:35%-65%
operating conditions	Ink type	Machine bases need to be self-provided
Avoid dusty environments,Avoid direct sunlight	Environmentally friendly UV curing ink	1400mm1000mm550mm

Description

The new printer- NC-UV9060MAX from Nuocai comes with new visual identification and accurate positioning. The printer can identify the position accurately and solve positioning problems easily. 8 color ,white ,varnish and primer make the printing color with high saturation and bright color. The printer can also spray to the primer directly, which can intensify the adhesion and save time and labor. 2-12 mm concave and convex surface printing is also available. It is widely used in hardware badges, 3C digital and toy and other industries. Stability, convenience, fast and high quality all in one. Each detail is designed carefully in order to make the user have a better experience.
