UV Printer for Mobile Phone Cases NC-UV0406-VI

Major Advantages

One machine can be used for multiple purposes, supporting both flat and cylindrical printing modes.
The printing height is 0-180mm to meet the printing needs of different products.
Equipped with 2 Epson I1600-U1 print heads, the accuracy can reach up to 1200dpi, white color can be produced at the same time, and the printing quality is exquisite
The body is compact, does not take up space, and is suitable for personalized customization.
A2 printing format, built-in air suction platform, making printing smoother.

ADD TO CART

Product Details

UV Printer for Mobile Phone Cases NC-UV0406-VI

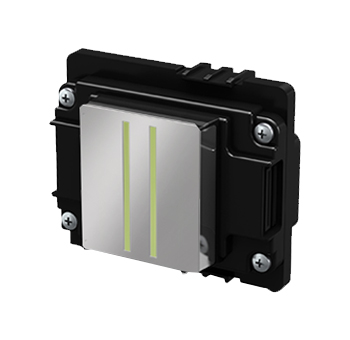

Equipped with 2 Epson I1600-U1 print heads, the accuracy can reach up to 1200dpi, white color can be produced at the same time, and the printing quality is exquisite

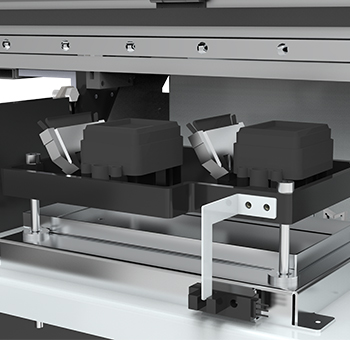

The design of the lifting ink station accurately controls the position of the head sealing and comprehensively protects the print head.

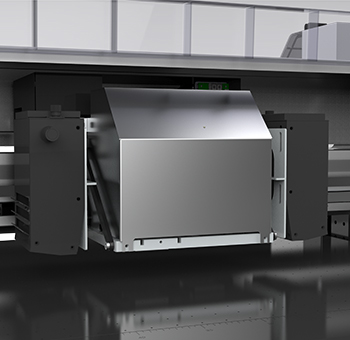

The ink truck is equipped with an intelligent touch and anti-collision sensing device. The ink truck automatically stops after a touch, protecting the print head and printing materials.

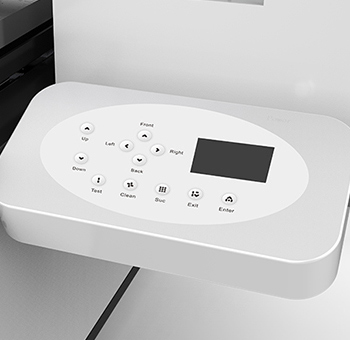

The control panel has various functions and the display is simple and easy to understand.

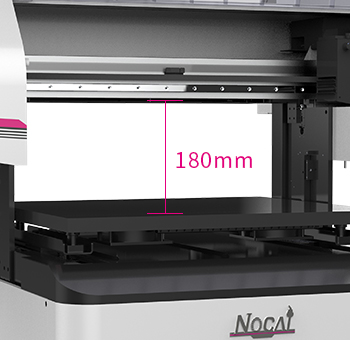

The printing height of 0-180mm can meet the printing needs of products of different thicknesses. It is suitable for a variety of product specifications and materials, with a wide range of applications.

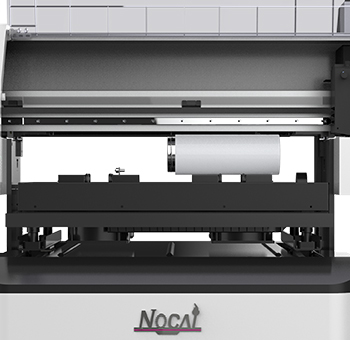

An electric cylinder jig is installed to realize 360-degree rotation printing, and cylinder products such as mugs and thermos cups can be printed to meet diverse personalized needs.

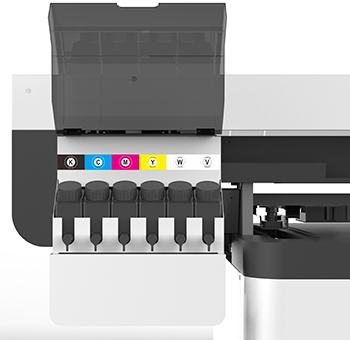

Automatic alarm for lack of ink, easy to add ink.

Parameter

Print head	Nozzle spray force range	Print size
Epson I1600-U1*2	2-3mm	400mm*600mm
Print height	Print version	Print mode
0-180mm	White and color print at same time	CMYK＋W
Print resolution	Printer dimension	N.W.
720600dpi / 720900dpi / 720*1200dpi	1443mm850mm760mm	118KG
Packing size	G.W.	Rip software
1.65m1.03m0.96m	190KG	FlexiPRINT MiniServer 19 Nocai Edition
Print speed	Graphic format	Connection method
0.93-4.53 square/h	Tiff,Jpg,Eps,Pdf,Png,AI	cable
Power	Rated power	Working environment
AC220/110V±10，50HZ~60HZ	143W	Temperature:20℃-28℃ Humidity:35%-65%
Operating conditions	Ink type	Machine bases need to be self-provided
Avoid dusty environments,Avoid direct sunlight

Description

NC-UV0406 is the first small digital inkjet flatbed printer with independent board in China, which defined printing format of 60*40cm.

The Nocai small digital inkjet UV printer has been iterated to the sixth generation. It has the characteristics of strong stability, compactness, space-saving, and diversified application scenarios. It is very suitable for personalized customization, such as entrepreneurship, on-site DIY customization, cultural creation, etc. The formats are all very appropriate.
