Nocai NC-SLP20 Scanning Label Printer

Major Advantages

Equipped with 2 Epson I1600-U1 printheads and maximum resolution is 1200dpi, minimum font size is 3pt.
Folding operation panel and easy to operate，suction platform and pressure are equipped，the printing material can be more flatter and the paper-moving more accurate.
The widest printing format :216mm，mass production of labels come with easy loading and unloading paper roll fixtures, convenient for different media sizes and fast switching.
Automatic ink circulation and lack of ink alarm prompt function, each color ink cartridge are independent from each other, you can add ink according to the corresponding color, it is very easy to operate.
Equipped with a pitch sensor to identify label edges automatically for precise positioning. Support a variety of types of label media and meet a variety of specific label printing needs.

ADD TO CART

Product Details

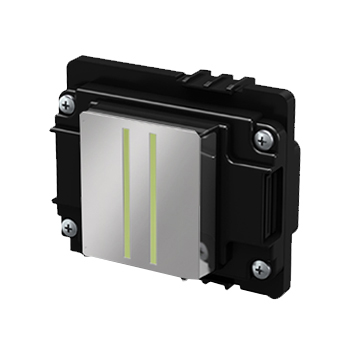

Equipped with 2 Epson I1600-U1 print heads, the accuracy can reach up to 1200dpi, white color can be produced at the same time, and the printing quality is exquisite.

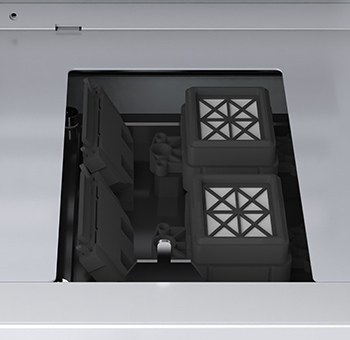

The design of the lifting ink station accurately controls the position of the head sealing and protects the print head comprehensively.

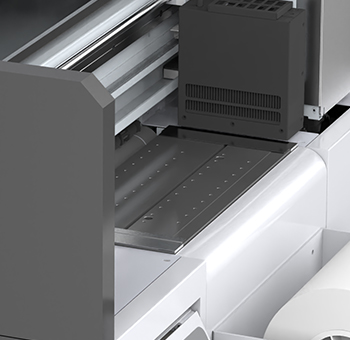

The high-precision honeycomb hard air-suction aluminum platform allows the printed product to be placed flat and better on the platform to ensure the printing effect.

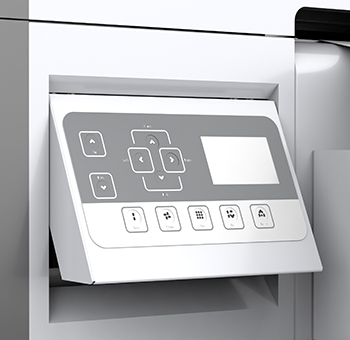

The control panel has various functions and the display is simple and easy to understand.

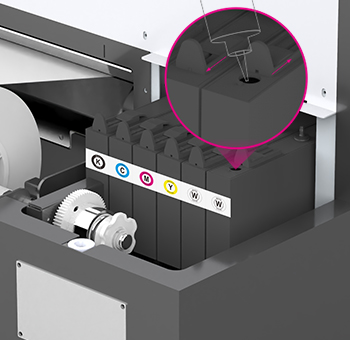

Intelligent ink filling system to prevent ink leakage and wrong filling. At the same time, it has the functions of automatic ink circulation and ink shortage alarm to prevent ink precipitation, and the intelligent reminder is more convenient.

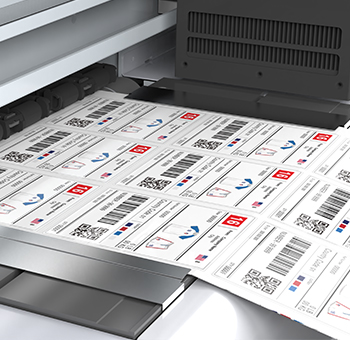

Equipped with a pitch sensor to identify label edges automatically for precise positioning. Support a variety of types of label media and meet a variety of specific label printing needs.

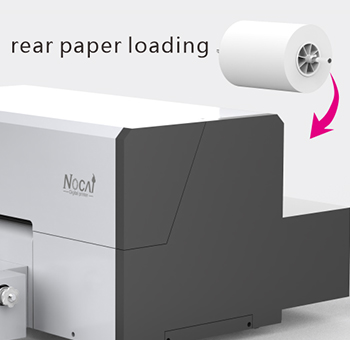

The widest printing format :216mm，mass production of labels come with easy loading and unloading paper roll fixtures, rear paper loading, front paper receiving, convenient for different media sizes and fast switching.

Parameter

Printhead configuration	Print resolution	Ink type
Epson i1600-U1*2	1200600dpi / 1800600dpi / 2400*600dpi	Environmently friendly UV curing ink
Cartridge capacity	Effective printing width	Supportive material
250ml/color	0-216mm	Glossy, matte and synthetic papers
Paper form	Material thickness	Roll paper specifications
Continuous paper, die-cut label paper	0.2-0.5mm	Weight：Within 10kg；Width：Within 200mm；Diameter：Within 203mm (76mm/3inches reel）
Interface Type	Voltage	Rated power
Network cable	AC220V/110V，50HZ~60HZ	/W
Print version	Print mode	Printing speed
White and color	CMYK+W	5-10meters/minute
Rip software	Graphic format	Printer dimension
Future RIP	Tiff/Jpg/Eps/Pdf/Png/AI	840mm807mm462mm
N.W.	Packing size	G.W.
70KG	940mm* 952mm*650mm	87KG
Working environment	Ink supply method
Temperature:20℃-28℃ Humidity:35%-65%	Ink supply through siphon

Description

NC-SLP20 scanning label printer from Nuocai，high-quality, personalized customization and color can be realized on demand；multi-material and different industries customization are available；wide printing format,the first color label printer with 8 inches；delicate and fashion design can save more space.
