Mobile Back Cover Photo Printing Machine NC-UV0609PEIII-II

Major Advantages

Equipped with 3 Epson I1600-U1 print heads, the accuracy can reach up to 1200dpi, white varnish is produced at the same time, and the printing quality is exquisite
High cost performance, stable performance and complete functions.
One machine has multiple uses. Adding a cylinder can achieve 360-degree rotation printing, such as mugs, thermos cups and other products.
The effects are diverse and can achieve white varnish, crystal mark, reverse varnish, bronzing and other effects.
Telescopic control panel design, easy to operate.

ADD TO CART

Product Details

Mobile Back Cover Photo Printing Machine NC-UV0609PEIII-II

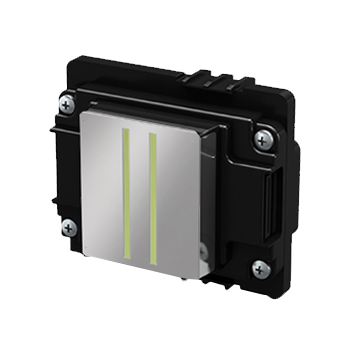

Equipped with 3 Epson I1600-U1 print heads, the accuracy can reach up to 1200dpi, and white varnish is produced at the same time, and the printing quality is exquisite

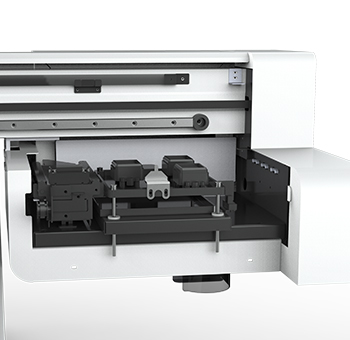

The design of the lifting ink station accurately controls the position of the head sealing and comprehensively protects the print head.

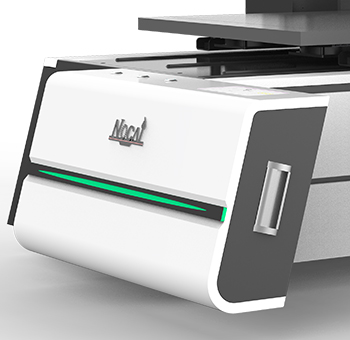

The telescopic control panel is easy to operate. The control panel has various functions and the display is simple and easy to understand.

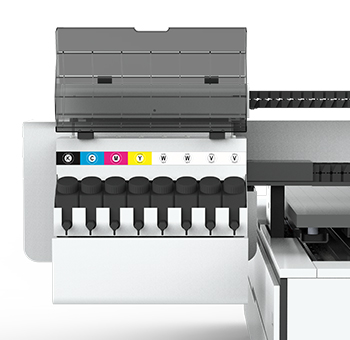

Automatic alarm for lack of ink, easy to add ink.

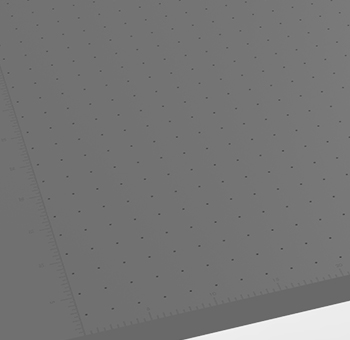

The high-precision honeycomb hard air-suction aluminum platform allows the printed product to be placed flat and better on the platform to ensure the printing effect.

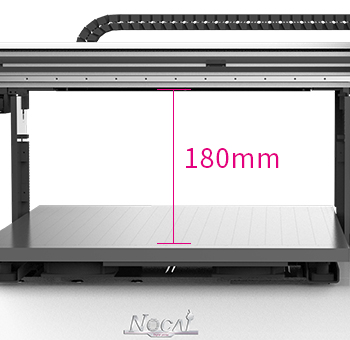

The printing height of 0-180mm can meet the printing needs of products of different thicknesses. It is suitable for a variety of product specifications and materials, with a wide range of applications.

An electric cylinder jig is installed to realize 360-degree rotation printing, and cylinder products such as mugs and thermos cups can be printed to meet diverse personalized needs.

Parameter

Print head	Nozzle spray force range	Print size
Epson I1600-U1*3	2-3mm	600mm*900mm
Print height	Print version	Print mode
0-180mm	White,Color&Varnish	CMYK+W+V
Print resolution	Printer dimension	N.W.
720900dpi / 7201200dpi	1676mm1627mm693mm	187KG
Packing size	G.W.	Rip software
1.82m1.83m0.98m	350KG	FlexiPRINT MiniServer 19 Nocai Edition
Print speed	Graphic format	Connection method
1.64-5.09 square/h	Tiff,Jpg,Eps,Pdf,Png,AI	cable
Power	rated power	Working environment
AC220/110V±10，50HZ~60HZ	245W	Temperature:20℃-28℃ Humidity:35%-65%
operating conditions	Ink type	Machine bases need to be self-provided
Avoid dusty environments,Avoid direct sunlight	Environmentally friendly UV curing ink	1370mm720mm550mm

Description

NC-UV0609PEIII-II is a flow product of Nocai UV0609 series. This machine has the advantages of high cost performance, diverse functions and strong stability, and is very suitable for small batch production needs. The application scenarios are diverse and suitable for industries such as advertising, gifts, stationery, handicrafts, and packaging.
